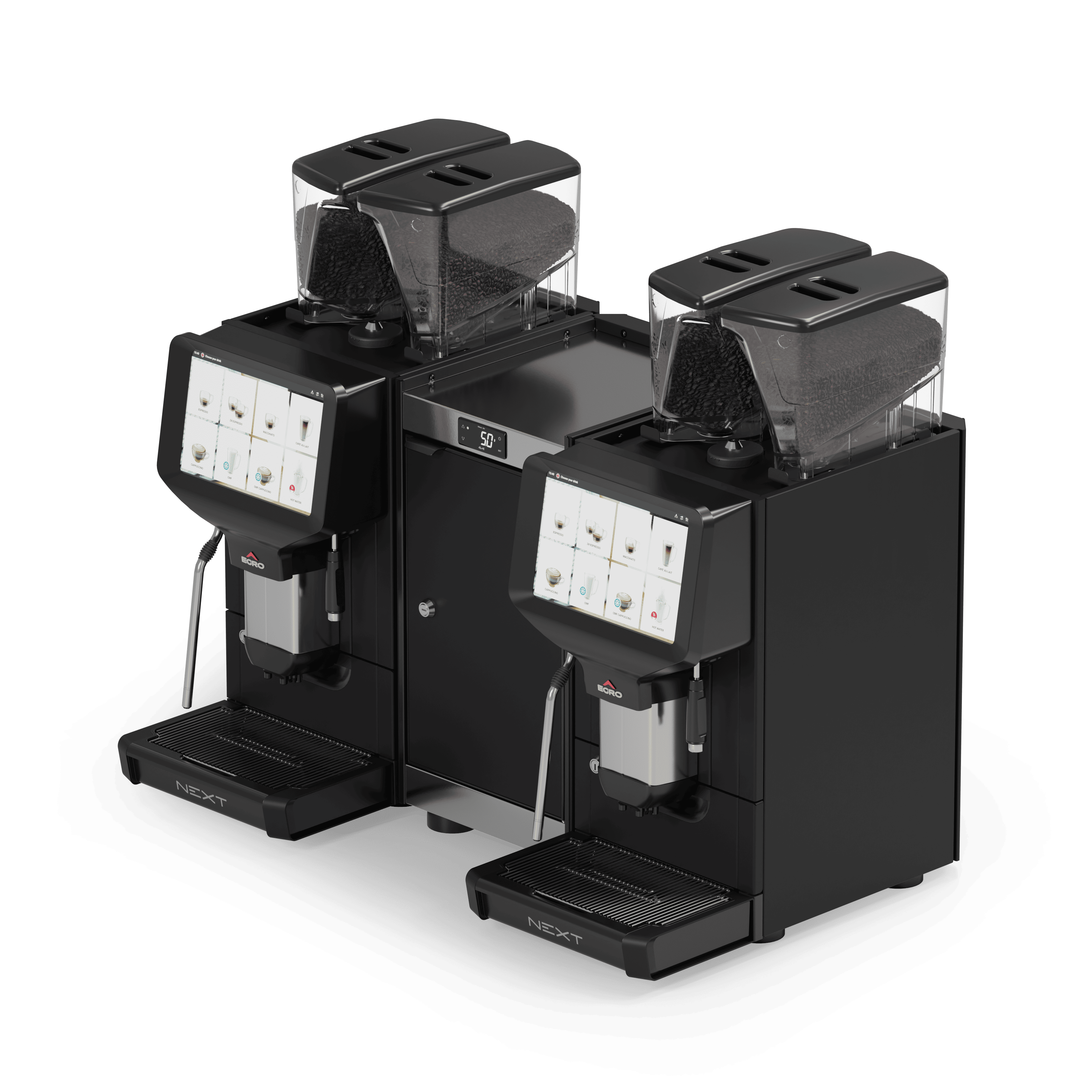

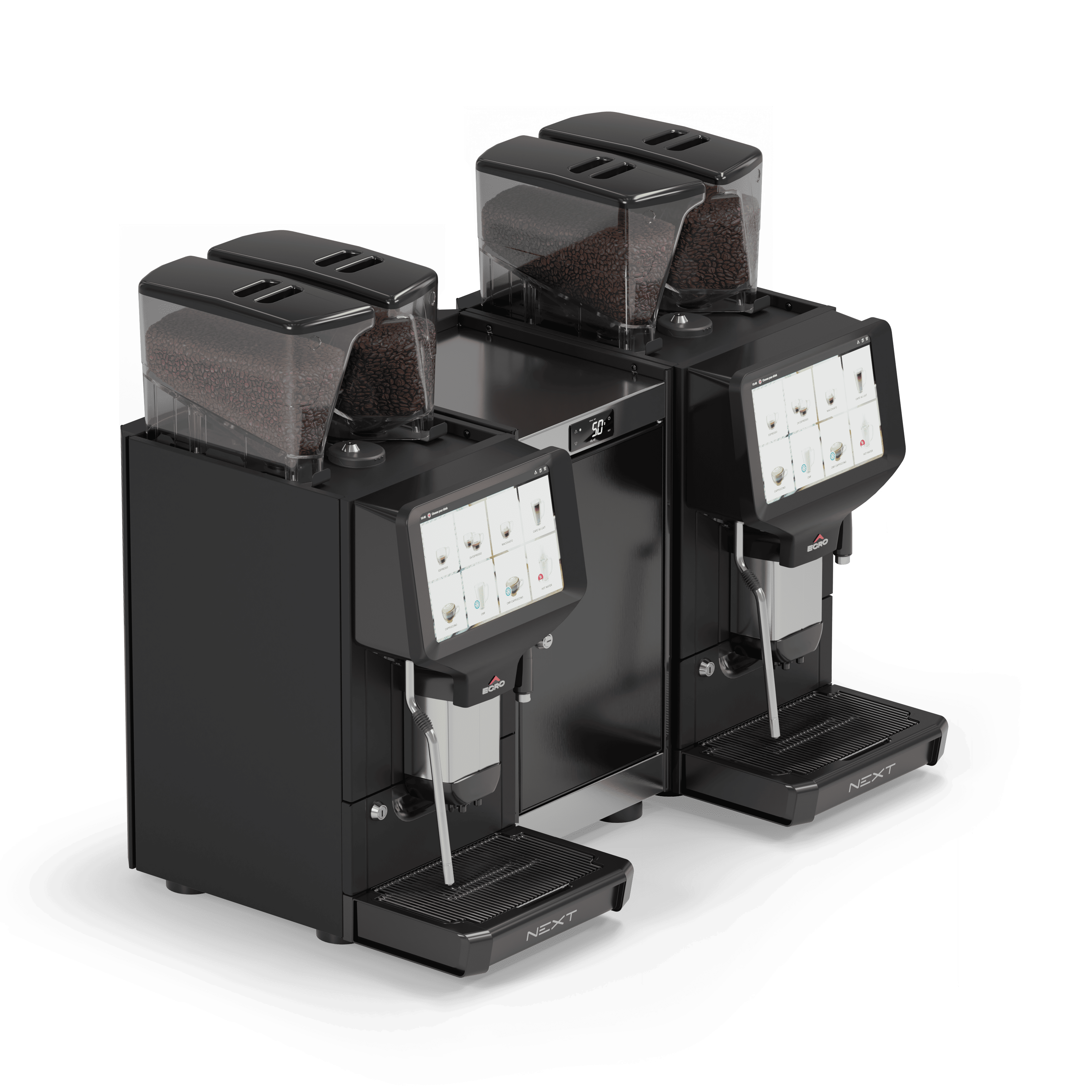

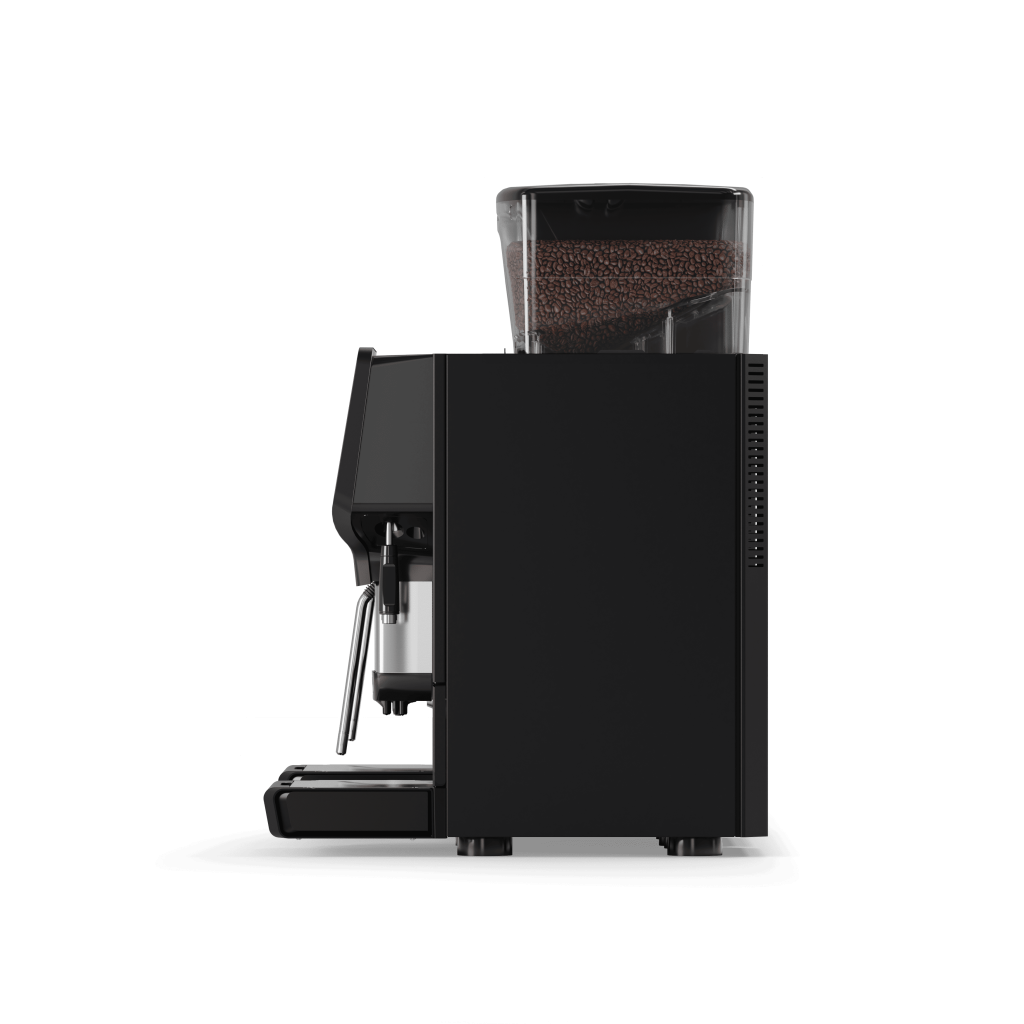

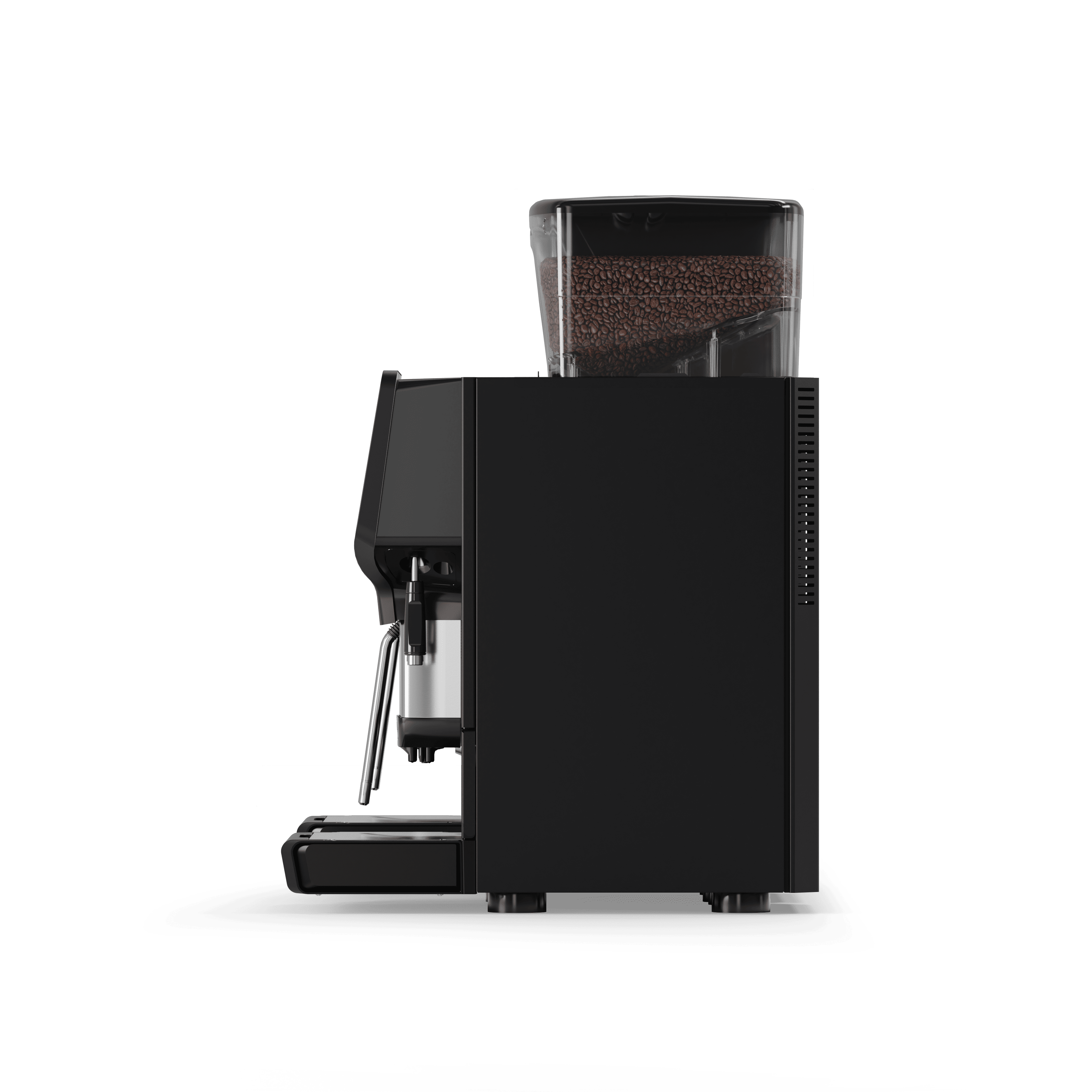

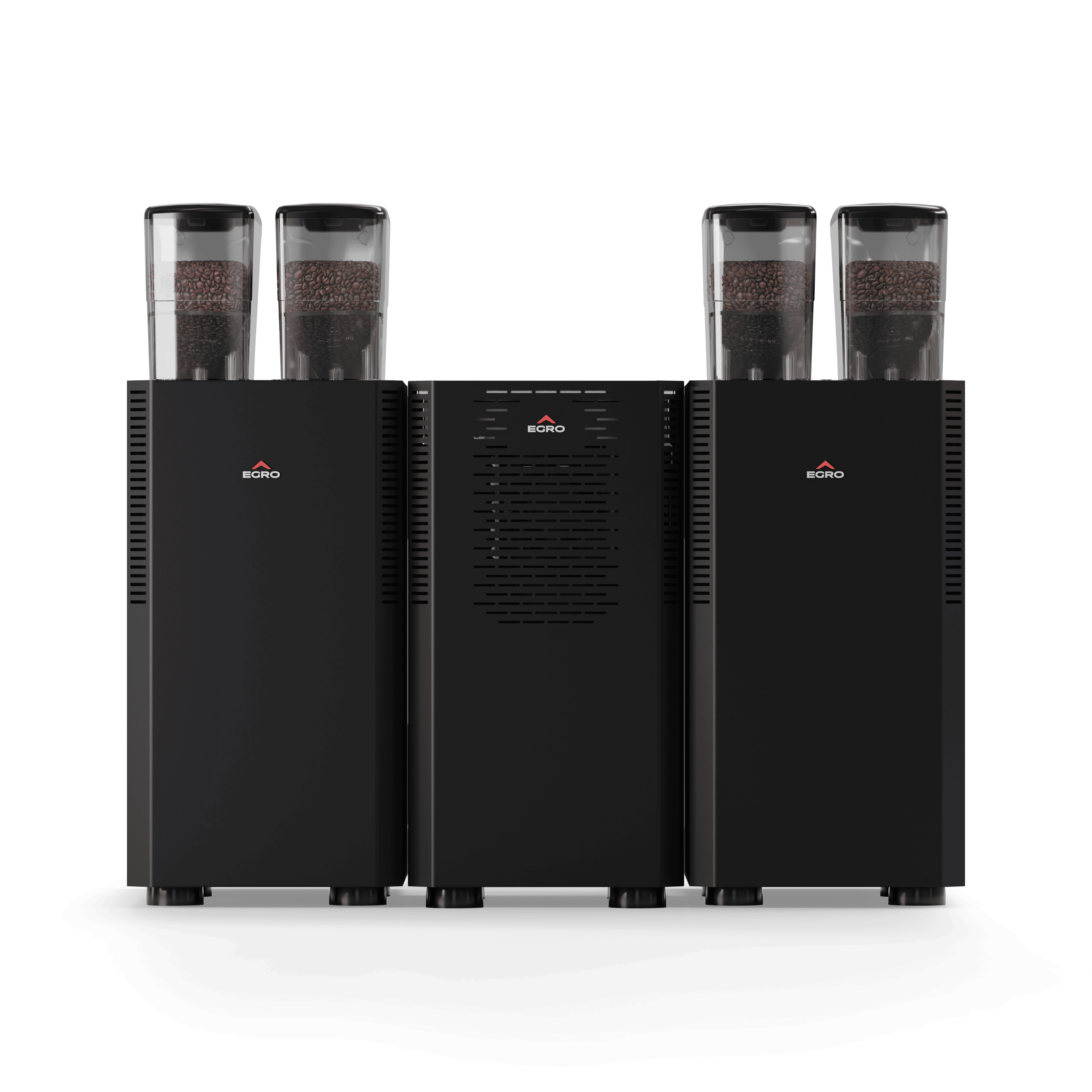

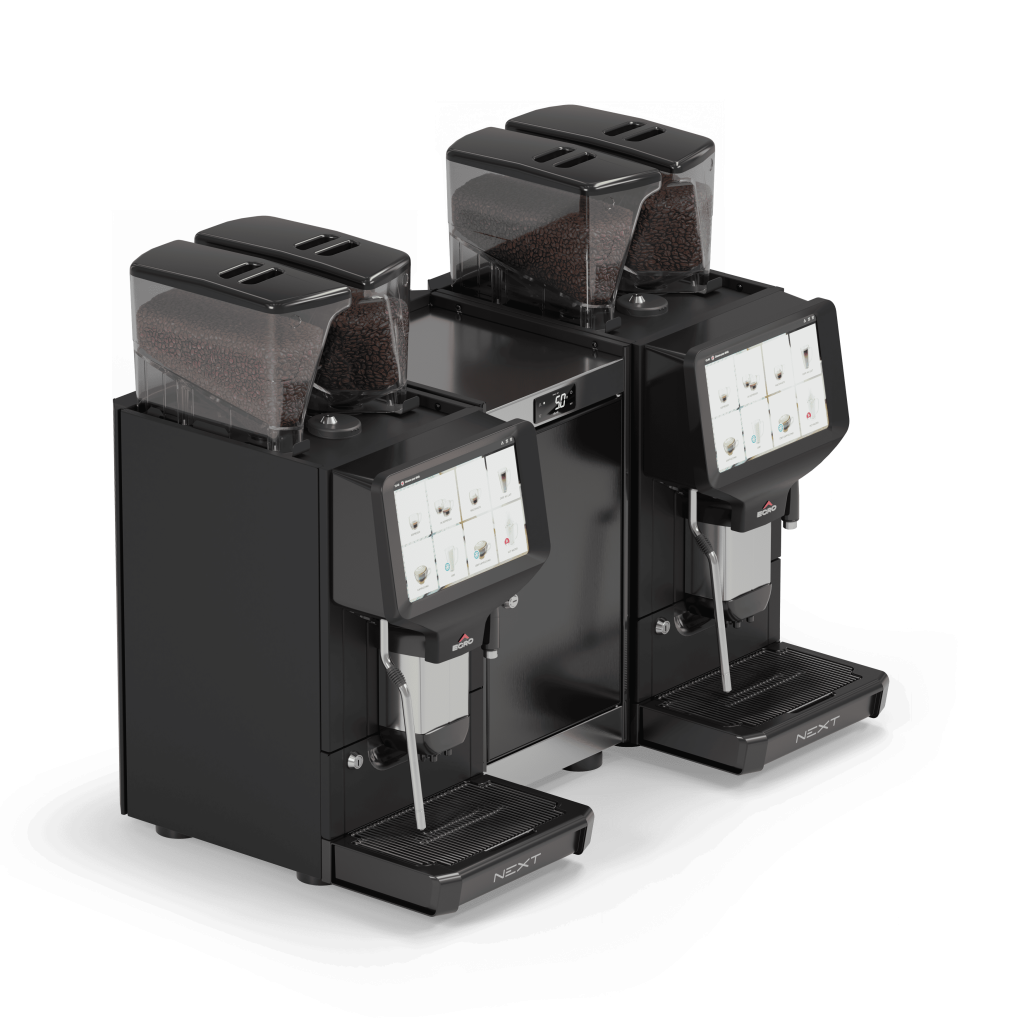

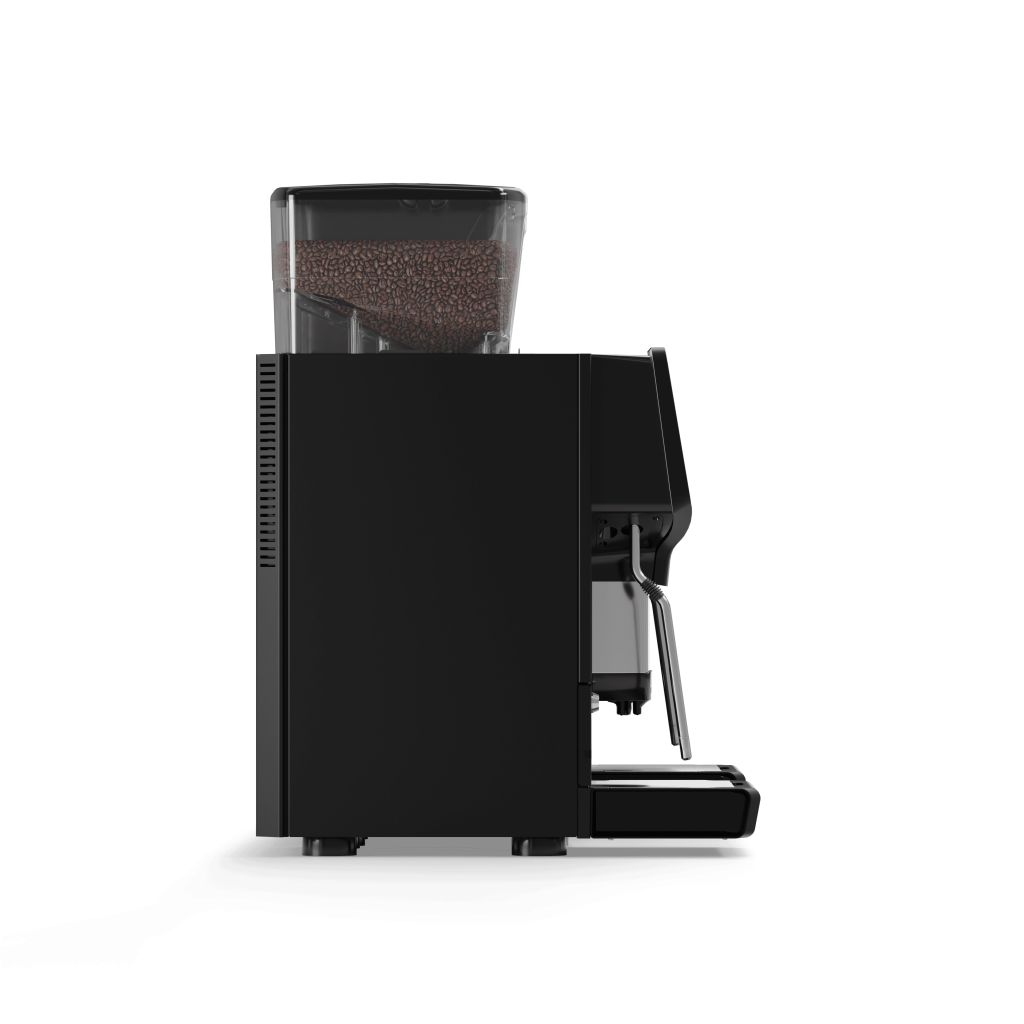

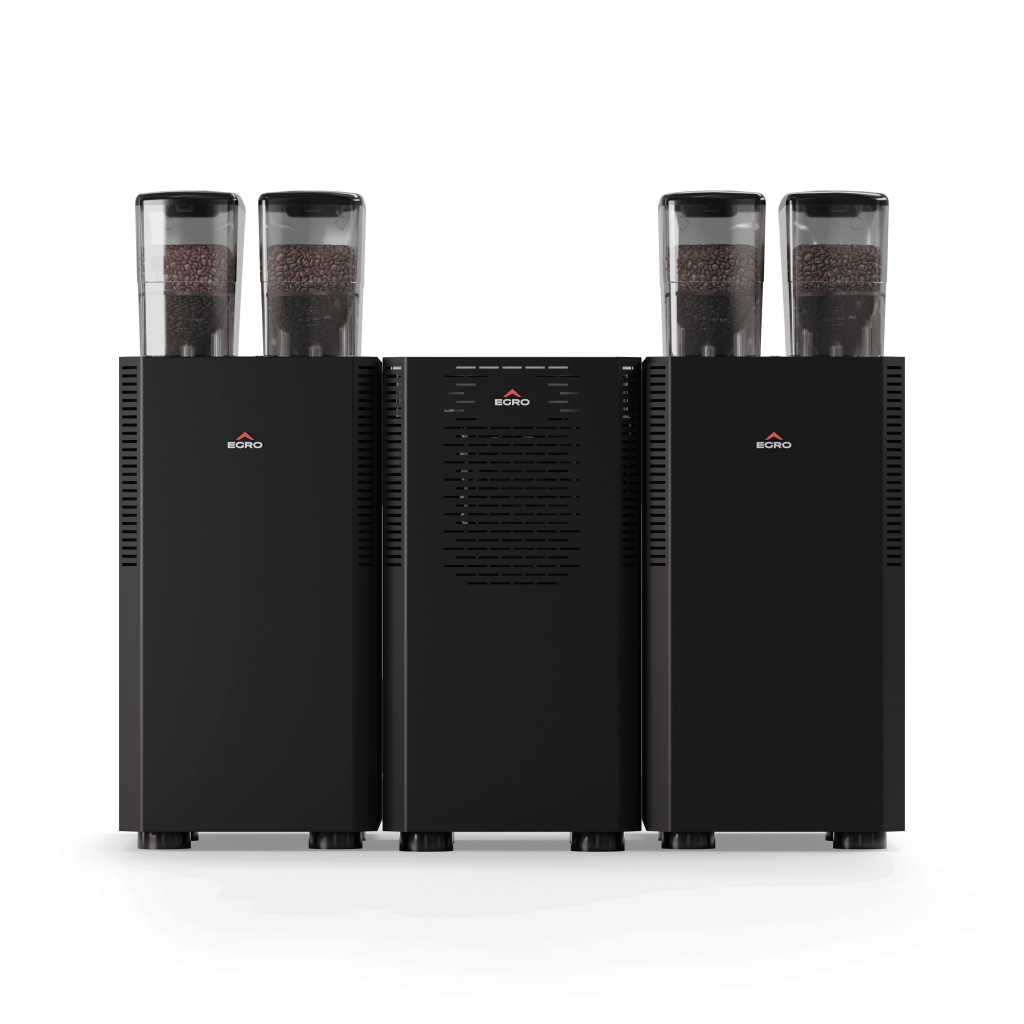

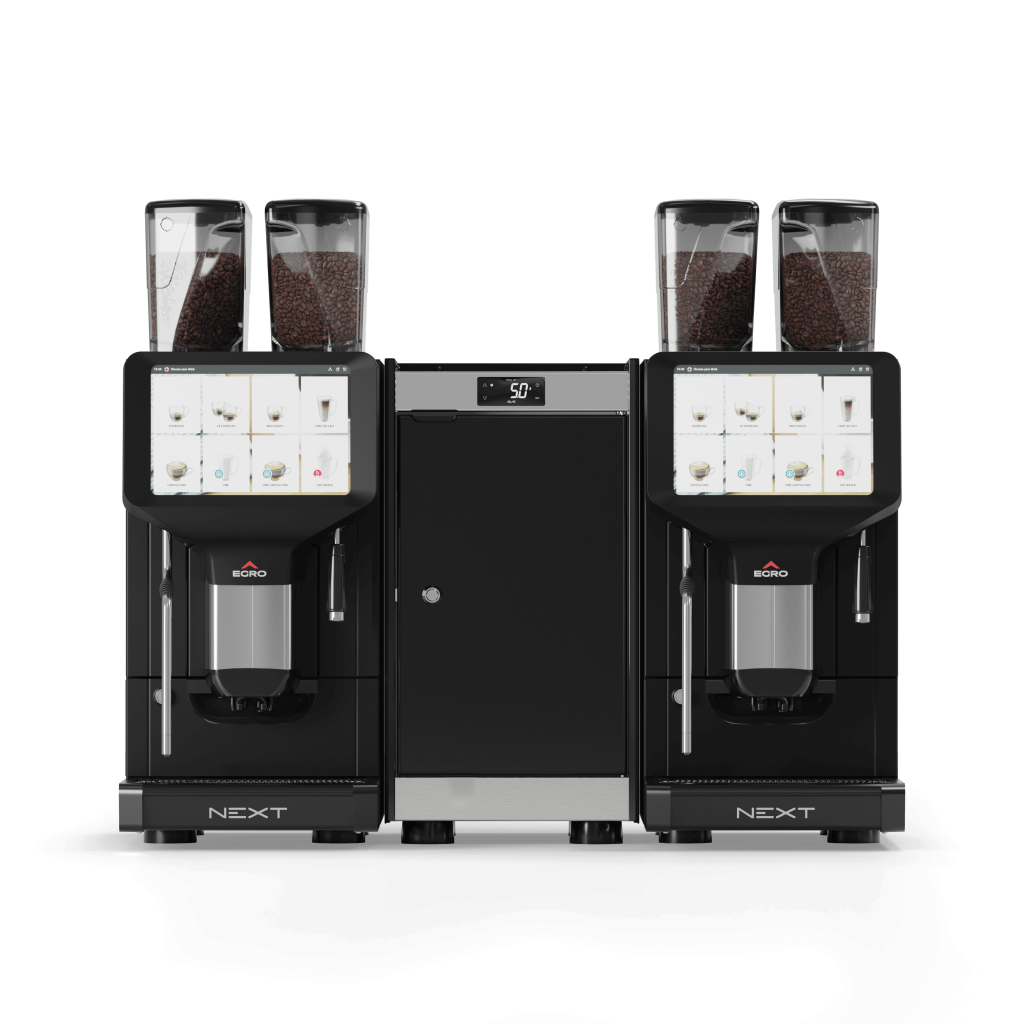

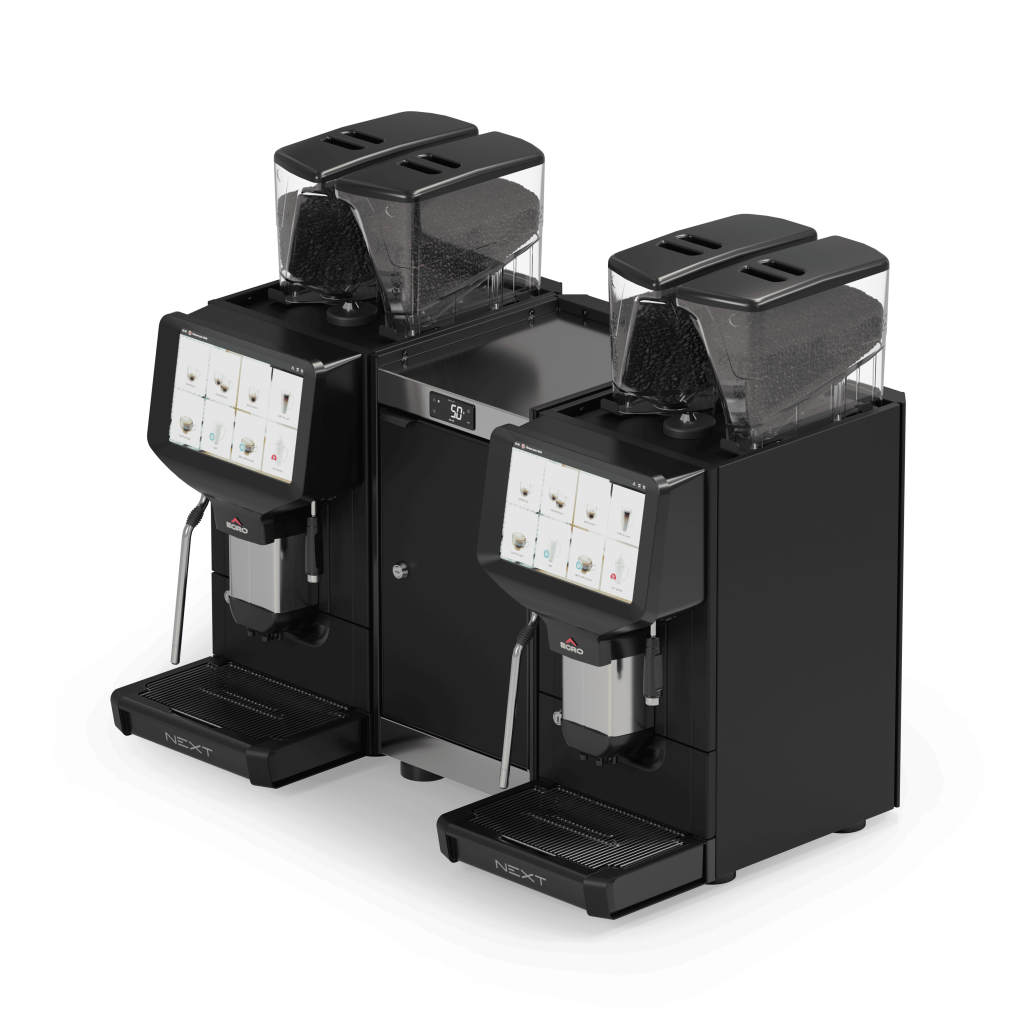

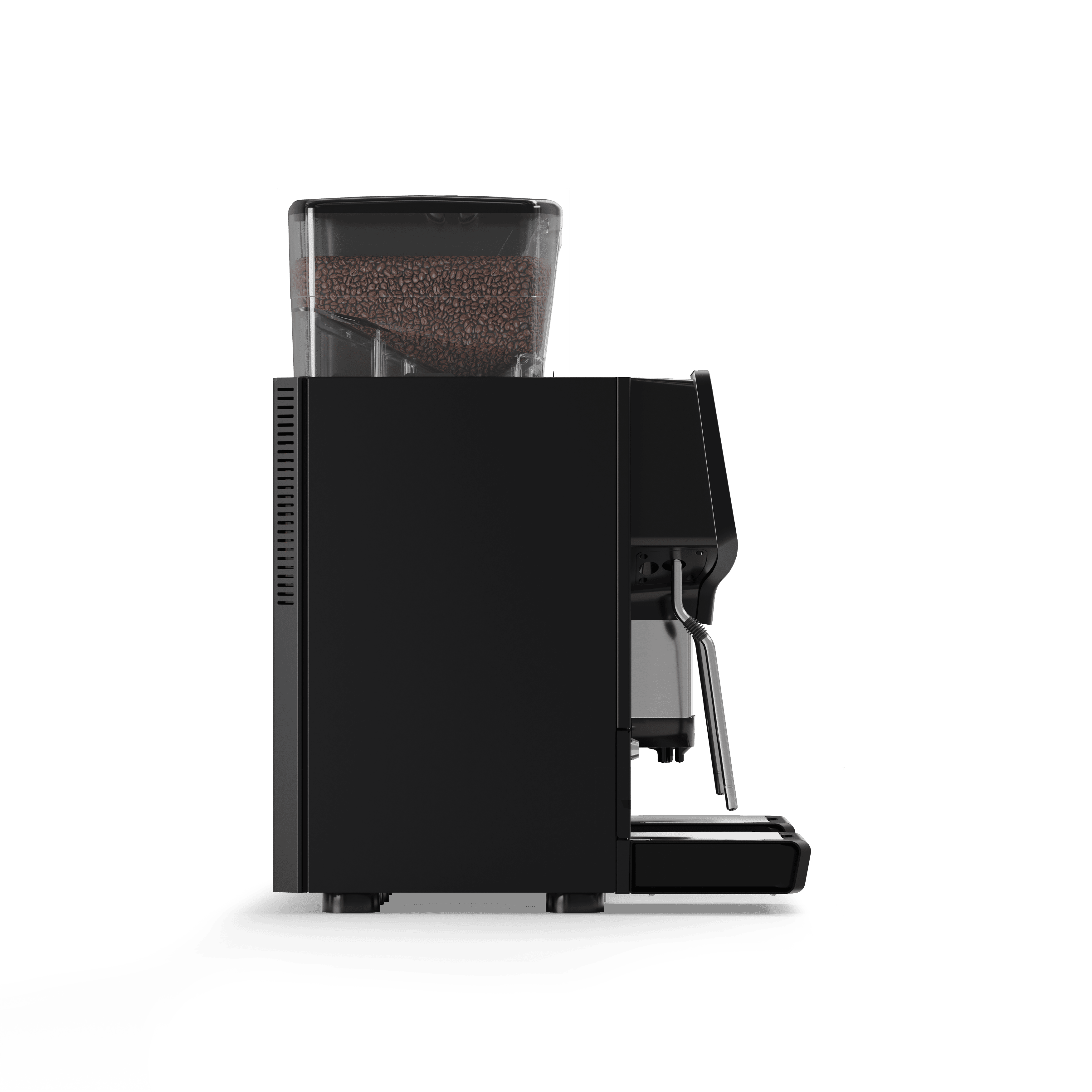

Next X2 NMS+

Next X2 NMS+

Performance

Daily output

600 cups

Espresso

250 cups/hour

Cappuccino

258 cups/hour

Americano

Drip coffee

Cafe creme

218 cups/hour

Hot water

372 cups/hour

Energy consumption
per day

Daily output

600 cups

Espresso

410 cups/hour

Cappuccino

414 cups/hour

Americano

Cafe creme

280 cups/hour

Hot water

Energy consumption
per day

Energy loss/day

3,645 kWh

Noise level during use

<70 dB

Technical Specification

Color

black

Dimensions

Width

900 mm /

35.4 inch

Height

770 mm /

30.3 inch

Depth

575 mm /

22.6 inch

Weight

143 kg /

315.3 lb

Notes

Dimensions including two machines and fridge

Beverages
  • Espresso
  • Americano (optional)
  • Cafe creme
  • Cappuccino
  • Latte macchiato
  • Hot Milk
  • Hot milk foam
  • Cold milk
  • Hot chocolate and other powders (optional)
  • Hot water
  • Steam (optional)
Operating Panel

Interface

2x 10 HD touchscreen

Programmable beverages

Unlimited

Coffee
  • 18 g brewing chamber
  • 22 g brewing chamber (optional)
  • Grinder
  • Self-Adjusting Grinder (SAG)
  • 2nd grinder (optional)
  • Bypass single cup (for 1 cup of Americano) (optional)
  • Bypass dual cup (for 2 cups of long coffee) (optional)

Grinding burrs

stainless steel 54 mm / 2.12 inch

Coffee bean hopper capacity

1.3 kg / 2.9 lb
Water
  • Central hot water outlet
  • Right side hot water outlet (optional)
Steam
  • Cool touch steam wand (optional)
  • Automatic steam wand (iSteam) (optional)
Milk

Milk System

NMS+

Powder

Chocolate and other powders

external module with 2 powder hoppers (optional)

Powder hopper capacity

2x 1.8 I
Power

Power supply

220-240 V3~, 50-60 Hz (6.0 kW)
220-240 V3~, 50-60 Hz (5.5 kW)
380-415 V2N~, 50-60 Hz (6.0 kW)
380-415 V2N~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (6.0 kW)
220-240 V~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (3.6 kW)
220-240 V~, 50-60 Hz (3.1 kW)
208/220-240 V2ph~, 60 Hz (5/6 kW)
208/220-240 V2ph~, 60 Hz (2/3 kW)

Water supply

Water mains connection

Hydraulic circuit

Coffee Boiler

2x 0.5 liter / 16.9 oz

Steam boiler

2x 1.9 liter / 64.2 oz
Cleaning

Automatic cleaning

Yes

Cleaning cycle time

6 mins
Fridges
  • MK6 fridge (6 liters)
  • SMPU (Pump Modules for under counter fridges) (optional)
Add-ons
  • Powder module (2 hoppers) (optional)
  • Cup warmer (optional)
  • GUM (optional)
Extra Features
  • Automatic Spout (optional)
  • Under counter grounds chute (optional)
  • Lock package (optional)
  • Option Self (Lock package, Cup stopper) (optional)
  • Payment systems (optional)
  • Connect telemetry system (optional)
