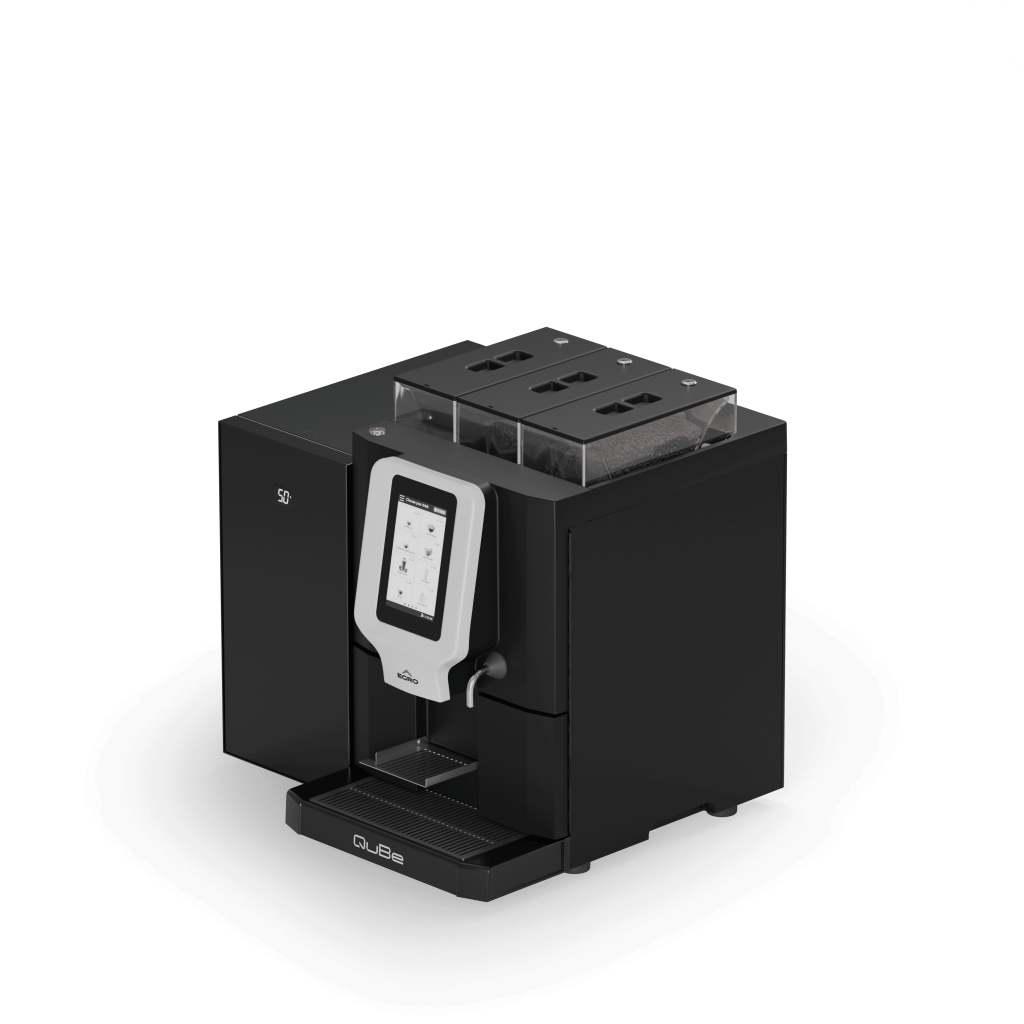

QuBe Quick Milk (2G+1S)

Performance

Daily output

100 cups

Espresso

Cappuccino

Americano

Drip coffee

Cafe creme

Hot water

Energy consumption
per day

Daily output

100 cups

Espresso

Cappuccino

Americano

Cafe creme

Hot water

Energy consumption
per day

Energy loss/day

Noise level during use

<70 dB

For more information about the delivery capacity and energy consumption of Egro coffee machines, please visit: HKI CERT / Homepage

Technical Specification

Color

black

Notes

The touchscreen frame is available in two colours: black or grey.

Dimension

Width

368 mm /

14.5 inch

Height

585 mm /

23 inch

Depth

554 mm /

21.8 inch

Weight

27 kg /

59.52 lb

Beverages

Espresso
Americano
Cafe creme
Cappuccino
Latte macchiato
Hot Milk
Hot milk foam
Hot chocolate and other powders
Hot water

Operating panel

Interface

7” Touchscreen

Programmable beverages

27

Coffee

9-16 g brewing chamber
Grinder
2nd grinder
Bypass single cup (for 1 cup of caffè Americano)

Grinding burrs

steel 44 mm

Coffee bean hopper capacity

0.6 kg / 1.3 lb

Water

Right side hot water outlet

Steam

Milk

Milk System

Quick Milk

Powder

Chocolate and other powders

1 built-in powder hopper

Powder hopper capacity

1x 1.5 l

Power

Power supply

100-125 V, 50-60 Hz (1.4 kW)
220-240 V, 50-60 Hz (1.7 kW)

Water supply

Water mains connection

Power rating

Noise level during use

Hydraulic circuit

Coffee Boiler

0.6 liter

Thermoblock

Instant steam for heating milk

Cleaning

Automatic cleaning

yes

Cleaning cycle time

14 mins

Fridges

Quick Milk fridge (4 liters) (optional)
MK4 fridge (4.5 liters) (optional)

Adds-ON

Extra Features

Lock package
MDB Protocol
Connect telemetry system (wi-fi only) (optional)

Color

black

Notes

The touchscreen frame is available in two colours: black or grey.

Dimensions

Width

368 mm /

14.5 inch

Height

585 mm /

23 inch

Depth

554 mm /

21.8 inch

Weight

27 kg /

59.52 lb

Beverages

Espresso
Americano
Cafe creme
Cappuccino
Latte macchiato
Hot Milk
Hot milk foam
Hot chocolate and other powders
Hot water

Operating Panel

Interface

7” Touchscreen

Programmable beverages

27

Coffee

9-16 g brewing chamber
Grinder
2nd grinder
Bypass single cup (for 1 cup of caffè Americano)

Grinding burrs

steel 44 mm

Coffee bean hopper capacity

0.6 kg / 1.3 lb

Water

Right side hot water outlet

Milk

Quick Milk

Milk System

Quick Milk

Powder

Chocolate and other powders

1 built-in powder hopper

Powder hopper capacity

1x 1.5 l

Power

Power supply

100-125 V, 50-60 Hz (1.4 kW)
220-240 V, 50-60 Hz (1.7 kW)

Water supply

Water mains connection

Hydraulic circuit

Coffee Boiler

0.6 liter

Thermoblock

Instant steam for heating milk

Cleaning

Automatic cleaning

yes

Cleaning cycle time

14 mins

Fridges

Quick Milk fridge (4 liters) (optional)
MK4 fridge (4.5 liters) (optional)

Extra Features

Lock package
MDB Protocol
Connect telemetry system (wi-fi only) (optional)

QuBe Quick Milk (2G+1S)

QuBe Quick Milk (2G+1S)

Performance

Daily output

100 cups

Espresso

Cappuccino

Americano

Drip coffee

Cafe creme

Hot water

Energy consumption per day

Daily output

100 cups

Espresso

Cappuccino

Americano

Cafe creme

Hot water

Energy consumption per day

Energy loss/day

Noise level during use

<70 dB

Technical Specification

Color

black

Notes

The touchscreen frame is available in two colours: black or grey.

Width

368 mm /

14.5 inch

Height

585 mm /

23 inch

Depth

554 mm /

21.8 inch

Weight

27 kg /

59.52 lb

Interface

7” Touchscreen

Programmable beverages

27

Grinding burrs

Coffee bean hopper capacity

Milk System​

Quick Milk

Chocolate and other powders

Powder hopper capacity​

Power supply

100-125 V, 50-60 Hz (1.4 kW) 220-240 V, 50-60 Hz (1.7 kW)

Water supply

Water mains connection

Power rating

Noise level during use​

Coffee Boiler

Thermoblock

Instant steam for heating milk

Automatic cleaning

Cleaning cycle time

Color

black

Notes

The touchscreen frame is available in two colours: black or grey.

Dimensions

Width

368 mm /

14.5 inch

Height

585 mm /

23 inch

Depth

554 mm /

21.8 inch

Weight

27 kg /

59.52 lb

Beverages

Operating Panel

Energy consumption
per day

Energy consumption
per day

Milk System

Powder hopper capacity

100-125 V, 50-60 Hz (1.4 kW)
220-240 V, 50-60 Hz (1.7 kW)

Noise level during use

100-125 V, 50-60 Hz (1.4 kW)
220-240 V, 50-60 Hz (1.7 kW)
