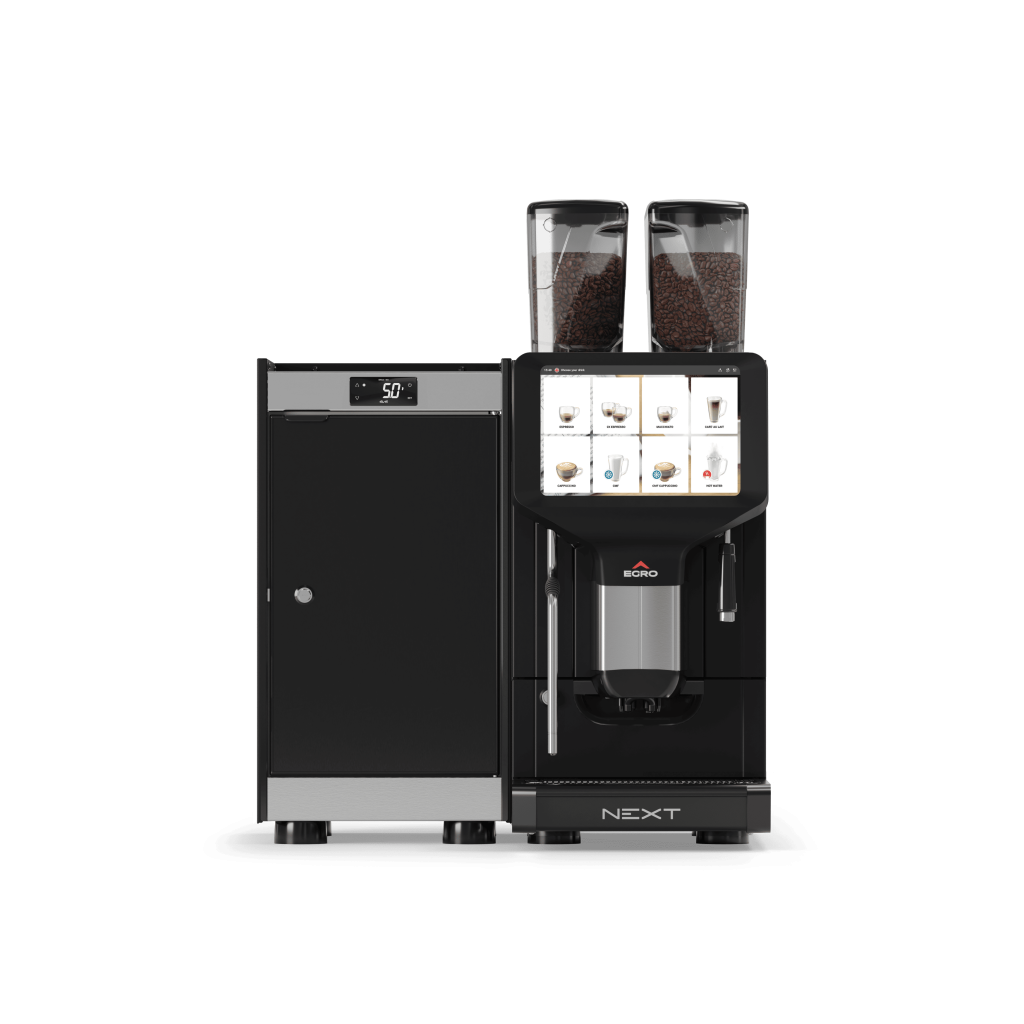

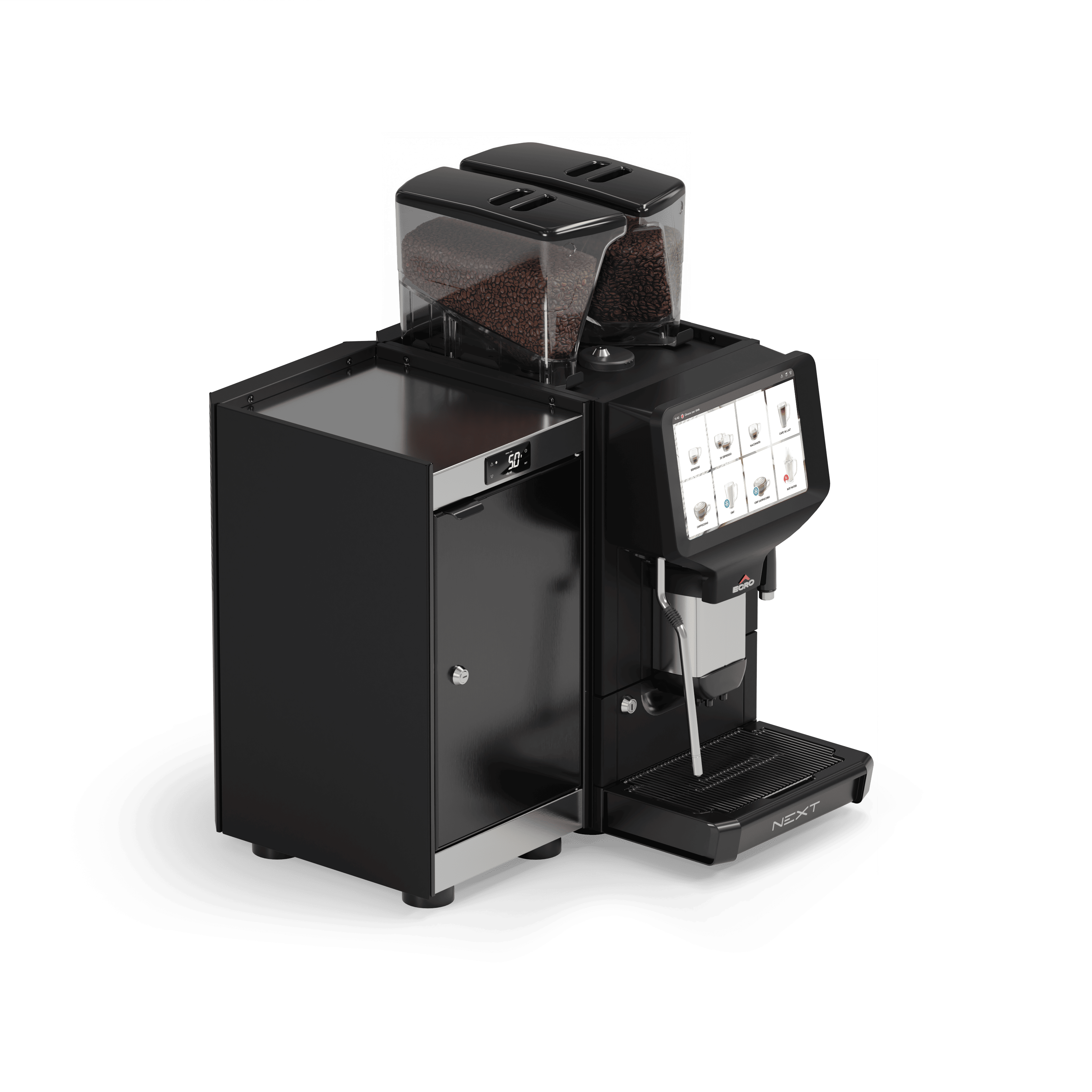

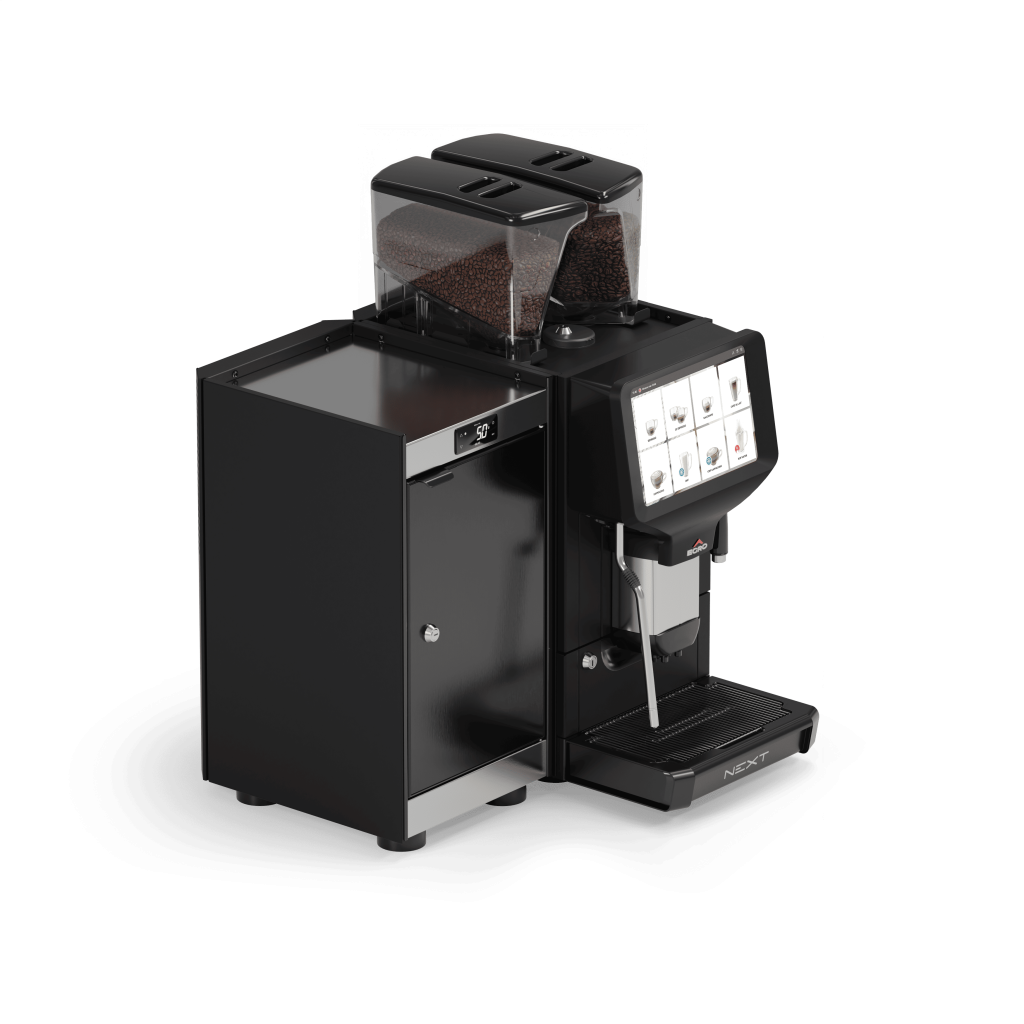

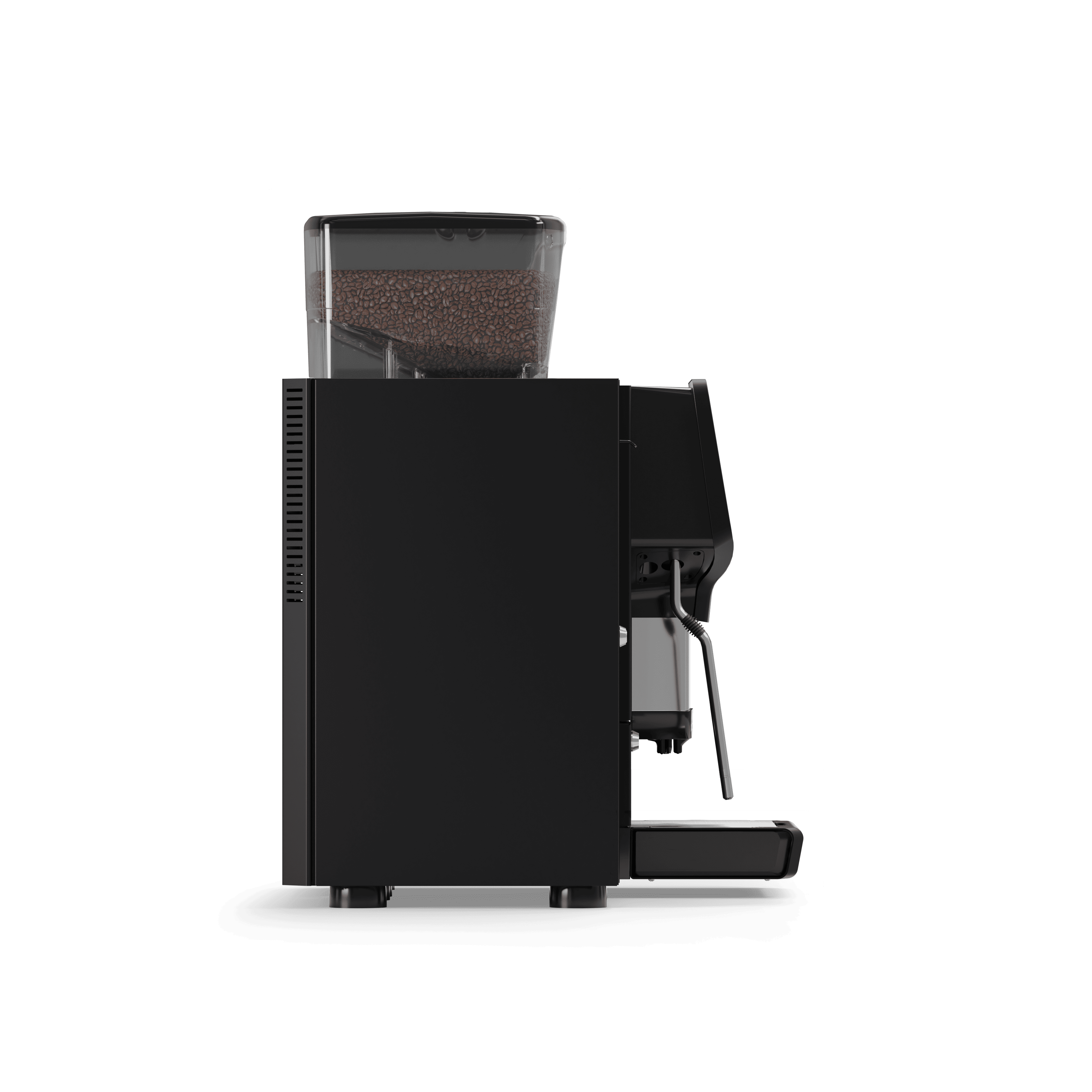

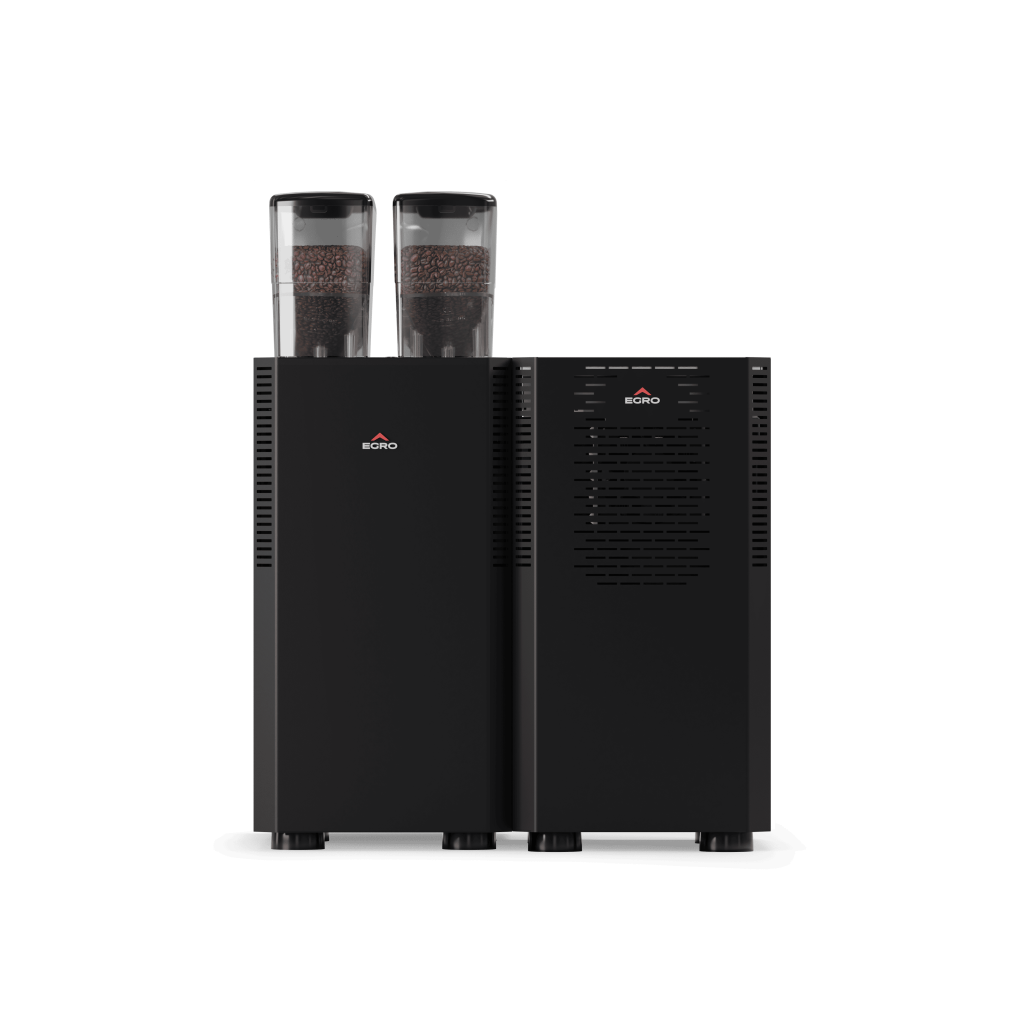

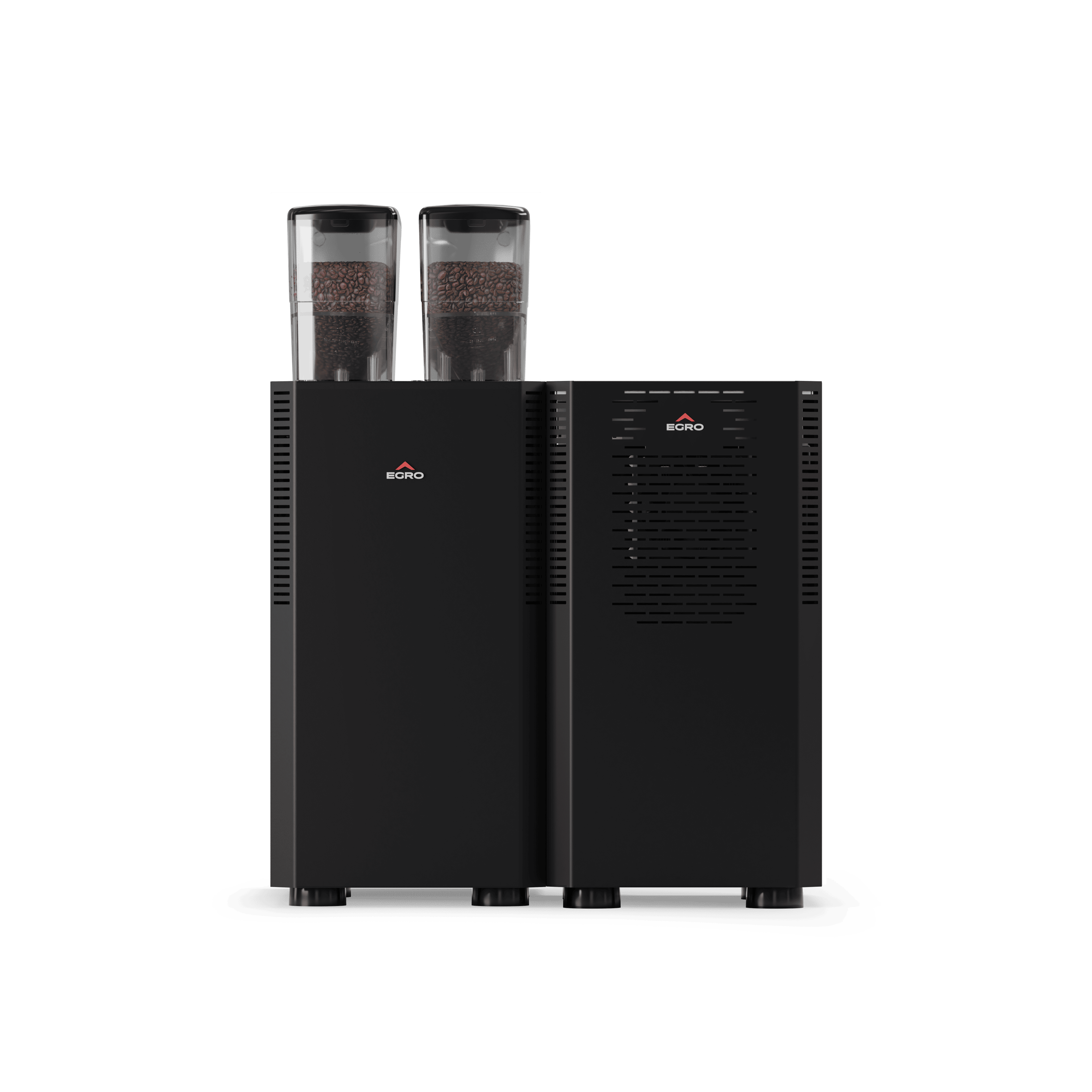

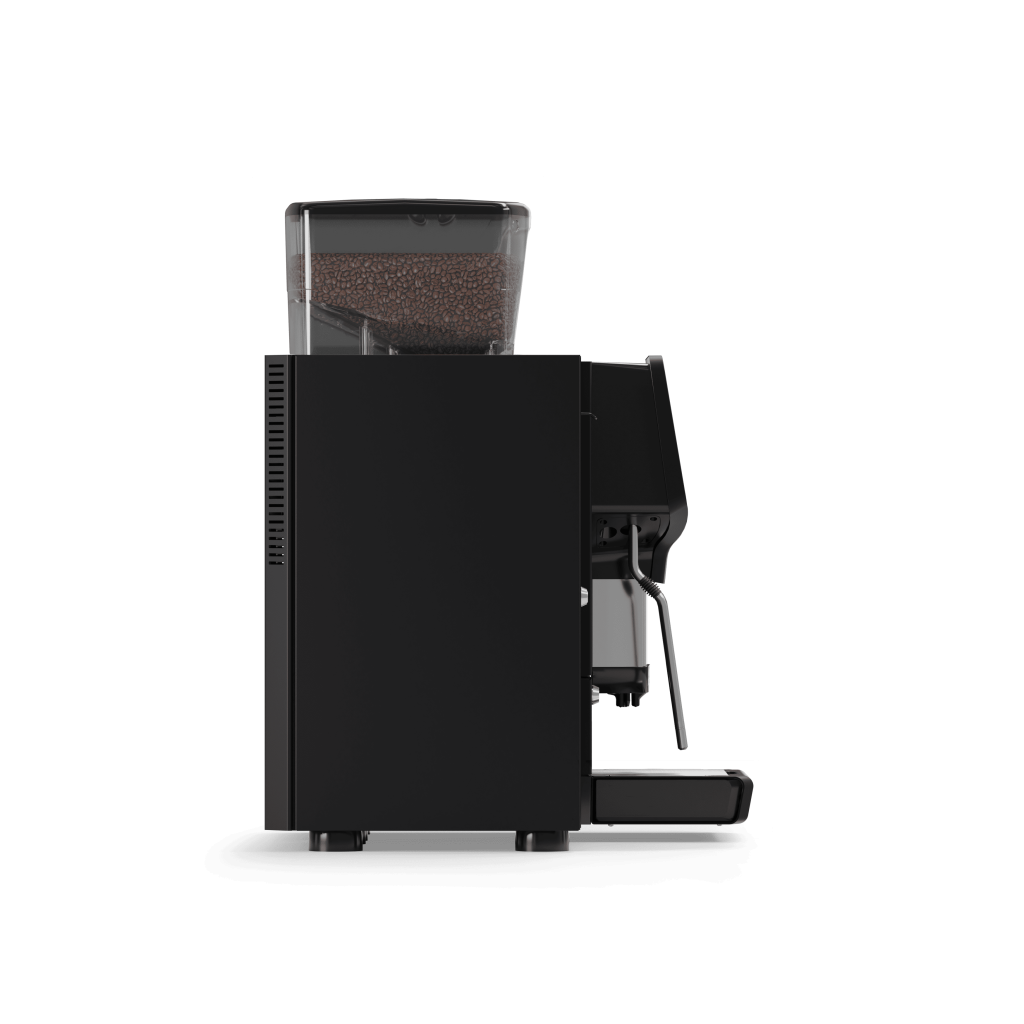

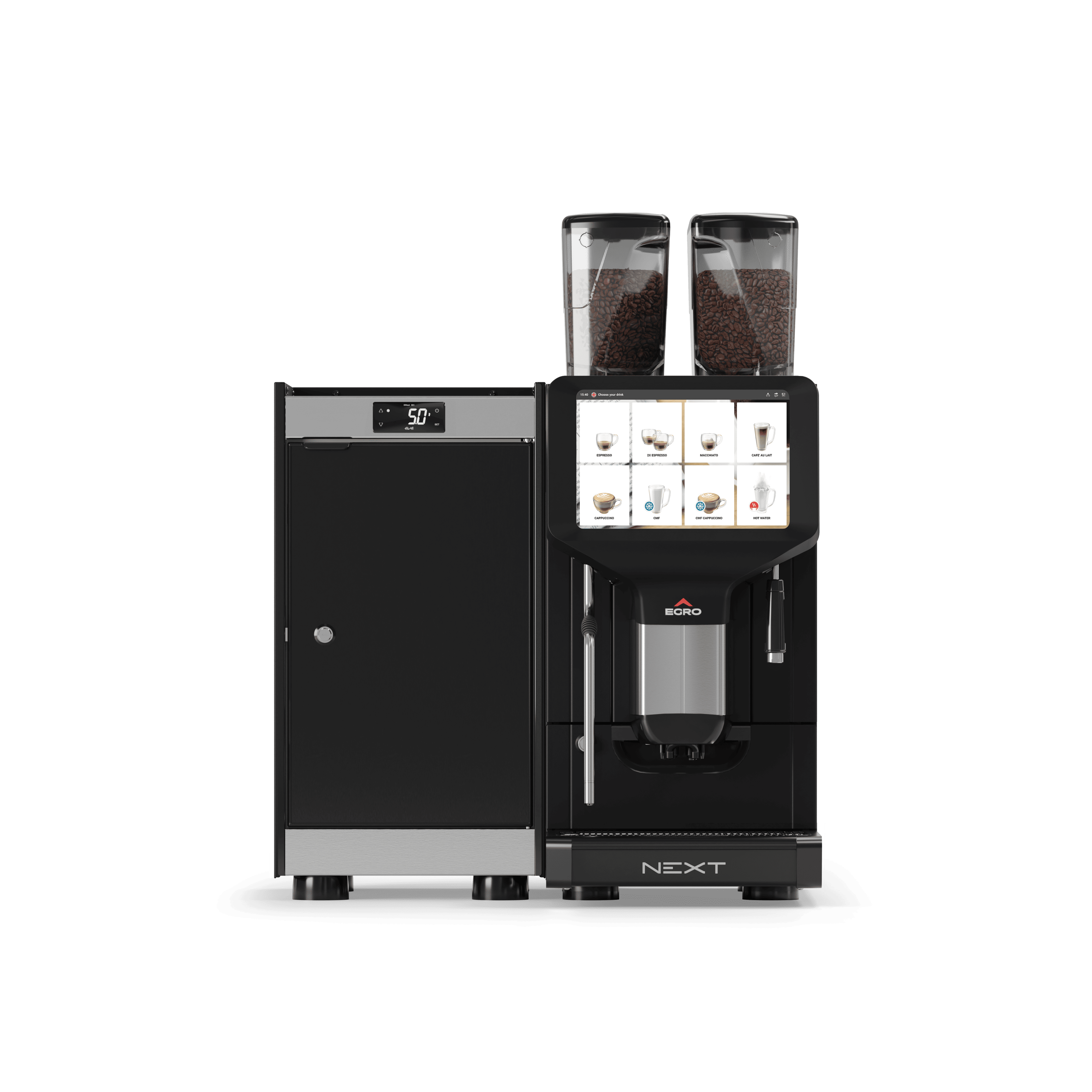

Next NMS+

Performance

Daily output

300 cups

Espresso

Cappuccino

Americano

Drip coffee

Cafe creme

Hot water

Energy consumption
per day

Daily output

300 cups

Espresso

Cappuccino

Americano

Cafe creme

Hot water

Energy consumption
per day

Energy loss/day

Noise level during use

<70 dB

For more information about the delivery capacity and energy consumption of Egro coffee machines, please visit: HKI CERT / Homepage

Technical Specification

Color

black

Dimension

Width

300 mm /

11.8 inch

Height

770 mm /

30.3 inch

Depth

575 mm /

22.6 inch

Weight

57 kg /

125.7 lb

Notes

Dimensions including machine main unit only

Beverages

Espresso
Americano (optional)
Cafe creme
Cappuccino
Latte macchiato
Hot Milk
Hot milk foam
Cold milk
CMF Cold milk foam (optional)
Hot chocolate and other powders (optional)
Hot water
Steam (optional)

Operating panel

Interface

10" HD touchscreen

Programmable beverages

Unlimited

Coffee

18 g brewing chamber
22 g brewing chamber (optional)
Grinder
Self-Adjusting Grinder (SAG)
2nd grinder (optional)
Hot water bypass (1 cup of Americano)(optional)
Hot water bypass (2 cups of long coffee)(optional)

Grinding burrs

stainless steel 54 mm

Coffee bean hopper capacity

1 kg / 2.2 lb

Water

Central hot water outlet
Right side hot water outlet (optional)

Steam

Cool touch steam wand (optional)
Automatic steam wand (iSteam) (optional)

Milk

Milk System

NMS+

Cold Milk Foam (CMF)

optional

Lactose free milk system

optional

Powder

Chocolate and other powders

optional external module with 2 powder hoppers

Powder hopper capacity

2x 1.8 I

Power

Power supply

220-240 V3~, 50-60 Hz (6.0 kW)
220-240 V3~, 50-60 Hz (5.5 kW)
380-415 V2N~, 50-60 Hz (6.0 kW)
380-415 V2N~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (6.0 kW)
220-240 V~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (3.6 kW)
220-240 V~, 50-60 Hz (3.1 kW)
208/220-240 V2ph~, 60 Hz (5/6 kW)
208/220-240 V2ph~, 60 Hz (2/3 kW)

Water supply

Water mains connection

Power rating

Noise level during use

Hydraulic circuit

Coffee Boiler

0.5 liter / 16.9 oz

Steam boiler

1.9 liter / 64.2 oz

Cleaning

Automatic cleaning

Yes

Cleaning cycle time

6 mins

Fridges

MK6 fridge (6 liters) (optional)
FUM fridge (4 liters) (optional)
SMPU (Pump Modules for under counter fridges) (optional)

Adds-ON

Powder module (2 hoppers) (optional)
Cup warmer (optional)
GUM (optional)

Extra Features

Automatic Spout (optional)
Under counter grounds chute (optional)
Lock package (optional)
Option Self (Lock package, Cup stopper) (optional)
Payment systems (optional)
Connect telemetry system (optional)

Color

black

Dimensions

Width

300 mm /

11.8 inch

Height

770 mm /

30.3 inch

Depth

575 mm /

22.6 inch

Weight

57 kg /

125.7 lb

Notes

Dimensions including machine main unit only

Beverages

Espresso
Americano (optional)
Cafe creme
Cappuccino
Latte macchiato
Hot Milk
Hot milk foam
Cold milk
CMF Cold milk foam (optional)
Hot chocolate and other powders (optional)
Hot water
Steam (optional)

Operating Panel

Interface

10" HD touchscreen

Programmable beverages

Unlimited

Coffee

18 g brewing chamber
22 g brewing chamber (optional)
Grinder
Self-Adjusting Grinder (SAG)
2nd grinder (optional)
Hot water bypass (1 cup of Americano)(optional)
Hot water bypass (2 cups of long coffee)(optional)

Grinding burrs

stainless steel 54 mm

Coffee bean hopper capacity

1 kg / 2.2 lb

Water

Central hot water outlet
Right side hot water outlet (optional)

Steam

Cool touch steam wand (optional)
Automatic steam wand (iSteam) (optional)

Milk

Lactose-free milk system (optional)
Cold Milk Foam (CMF) (optional)
NMS+

Milk System

NMS+

Cold Milk Foam (CMF)

optional

Lactose free milk system

optional

Powder

Chocolate and other powders

optional external module with 2 powder hoppers

Powder hopper capacity

2x 1.8 I

Power

Power supply

220-240 V3~, 50-60 Hz (6.0 kW)
220-240 V3~, 50-60 Hz (5.5 kW)
380-415 V2N~, 50-60 Hz (6.0 kW)
380-415 V2N~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (6.0 kW)
220-240 V~, 50-60 Hz (5.5 kW)
220-240 V~, 50-60 Hz (3.6 kW)
220-240 V~, 50-60 Hz (3.1 kW)
208/220-240 V2ph~, 60 Hz (5/6 kW)
208/220-240 V2ph~, 60 Hz (2/3 kW)

Water supply

Water mains connection

Hydraulic circuit

Coffee Boiler

0.5 liter / 16.9 oz

Steam boiler

1.9 liter / 64.2 oz

Cleaning

Automatic cleaning

Yes

Cleaning cycle time

6 mins

Fridges

MK6 fridge (6 liters) (optional)
FUM fridge (4 liters) (optional)
SMPU (Pump Modules for under counter fridges) (optional)

Add-ons

Powder module (2 hoppers) (optional)
Cup warmer (optional)
GUM (optional)

Extra Features

Automatic Spout (optional)
Under counter grounds chute (optional)
Lock package (optional)
Option Self (Lock package, Cup stopper) (optional)
Payment systems (optional)
Connect telemetry system (optional)
